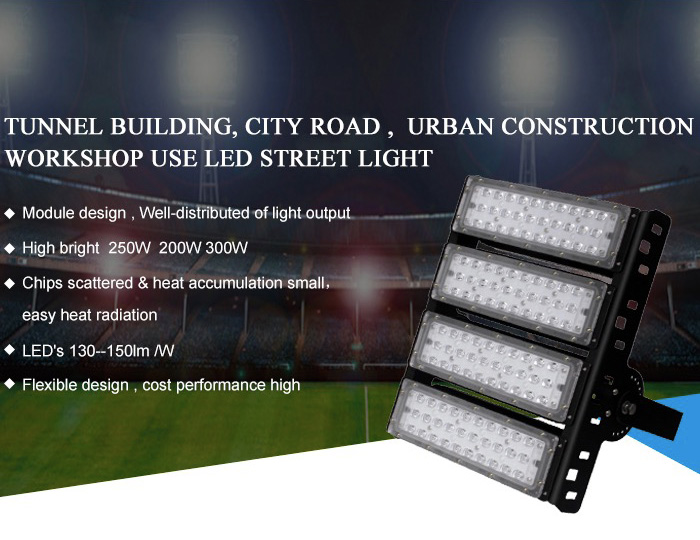

400W High power aluminum led tunnel light fitting housing Die cast led tunnel light housing 100w 200w led street light enclosure tunnel light casing
Model No: EK-TL01
Match Power: 100W/150W/200W
Contain Accessories: Aluminum Housing,Toughened Glass, Assembly Screws,Lamp Post pole,
Item : IP65 LED Street Lighting Housing
Power : 100W / 400W
Input Voltage : AC220 - 240V, 50/60 HZ
Color Choose : Dark Gray, Black, Customized etc
Lifespan : ≥50000 Hours
Характеристики на продукта
- High quality Aluminum Raw material
- Silica gel rubber ring IP66 Waterproof
- 4mm thickness tempering glass with IK09
- Good structure design ,high conductivity , fast convolution property
- Tranditional good appearance
- 304 stainless parts & screws use suit on seaside
- Standard colors : black, gray and others customized
- Tooless entry to replace power driver , easy maintain
- Very high light ratio due to excellent light distribution design lens,
- Corrosion resistance powder coating 2.0lm thickness
Цяла серия и спецификация
Код на модела | Housing Size (Mm) | Мощност на мача | Moduel Qty (Pc) | Аксесоари |
EK-TL01-1M | 315*90*130 | 50W | 1 | Heatsink body, supports /PCB/LENS Waterproof Rubber Ring,304 S/S screws, |
EK-TL01-2M | 315*180*130 | 100W | 2 | |
EK-TL01-3M | 315*270*130 | 150W | 3 | |
EK-TL01-4M | 315*360*130 | 200W | 4 | |
Legend: Std = ADC12 Aluminum Raw material | ||||
Housing Material :Die-cast Aluminum + Aluminum PCB ,LENS | ||||
Работна температура -40℃~50℃ 20%~90% HR |
Led Tunnel Light Case Tunnel Light Fixture
EK-TL01
IP65/IP66, IK08/IK09,
Материал: ADC12 алуминий
Цвят на корпуса: сив, черен,
